To view information about ServerLink's configuration and execution, go to Settings > ServerLink.
The ServerLink tab has four sub-tabs:

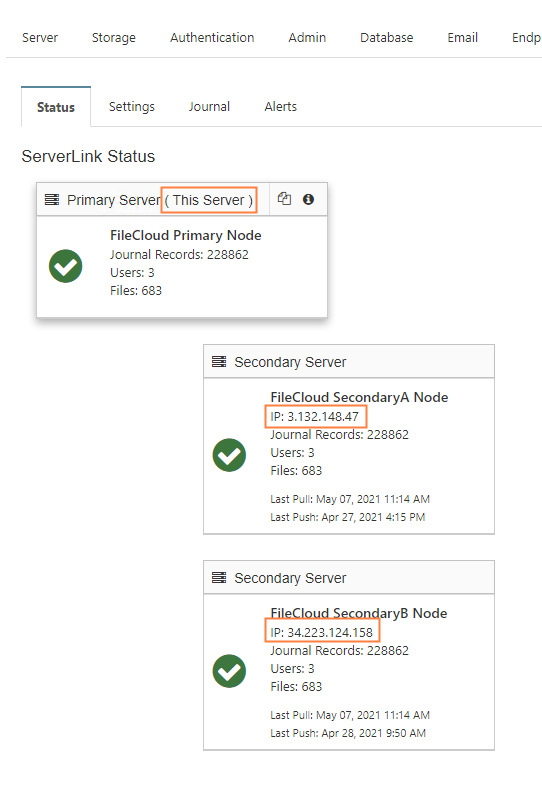

The Status tab displays information about the primary server and each of its secondary servers.
The following images display a configuration with one primary server and two secondary servers; if there were additional secondary servers, boxes representing each of them would also appear for them in the images.
User is signed in to the secondary server
The following information is displayed for the servers:
Understanding warning and error messages
When you hover over the red or yellow icon you may see one of the following messages:
The default warning threshold is 15 minutes, and the default error threshold is 120 minutes. To change these:

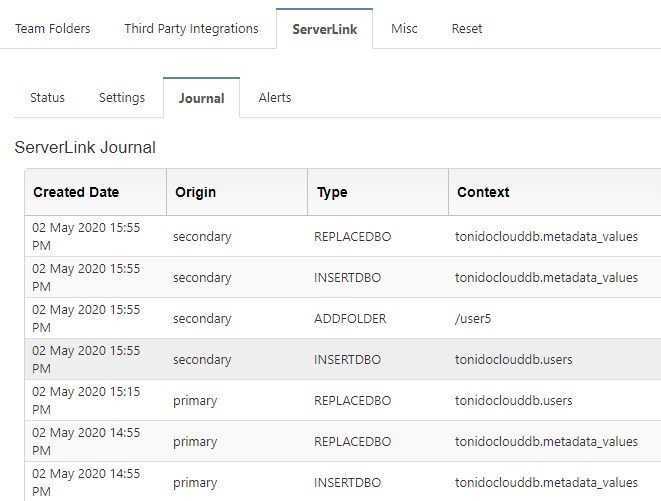

The journal is a log of all ServerLink syncing actions:
The columns in the Journal tab give the following information:
Origin - The name of the ServerLink node where the journal record was created.
Type - Type of action.
Context - Area of system where action occurred.

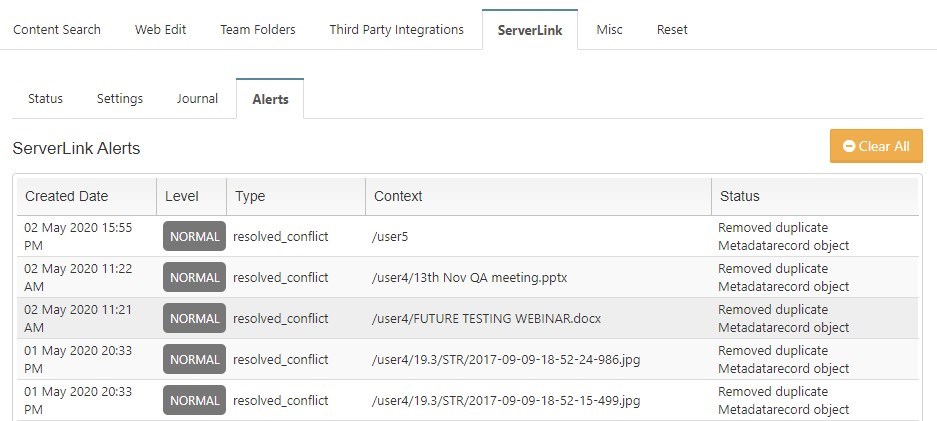

ServerLink alerts inform a user about certain types of incidents that occur during ServerLink syncing, such as removal of a duplicate record or a request error.
The columns in the alerts give the following information:
Created Date - Time and date incident alert was created (approximate time and date incident occurred).
Level - Severity of incident.
Type - Type of incident (for example, error or resolved conflict).
Context - File or folder incident applies to, if any.
Status - Description of incident.
