Integrate Ping Identity SSO with Filecloud
This article describes how to integrate PingOne as an SSO provider with FileCloud.
Configuration in Ping Identity portal

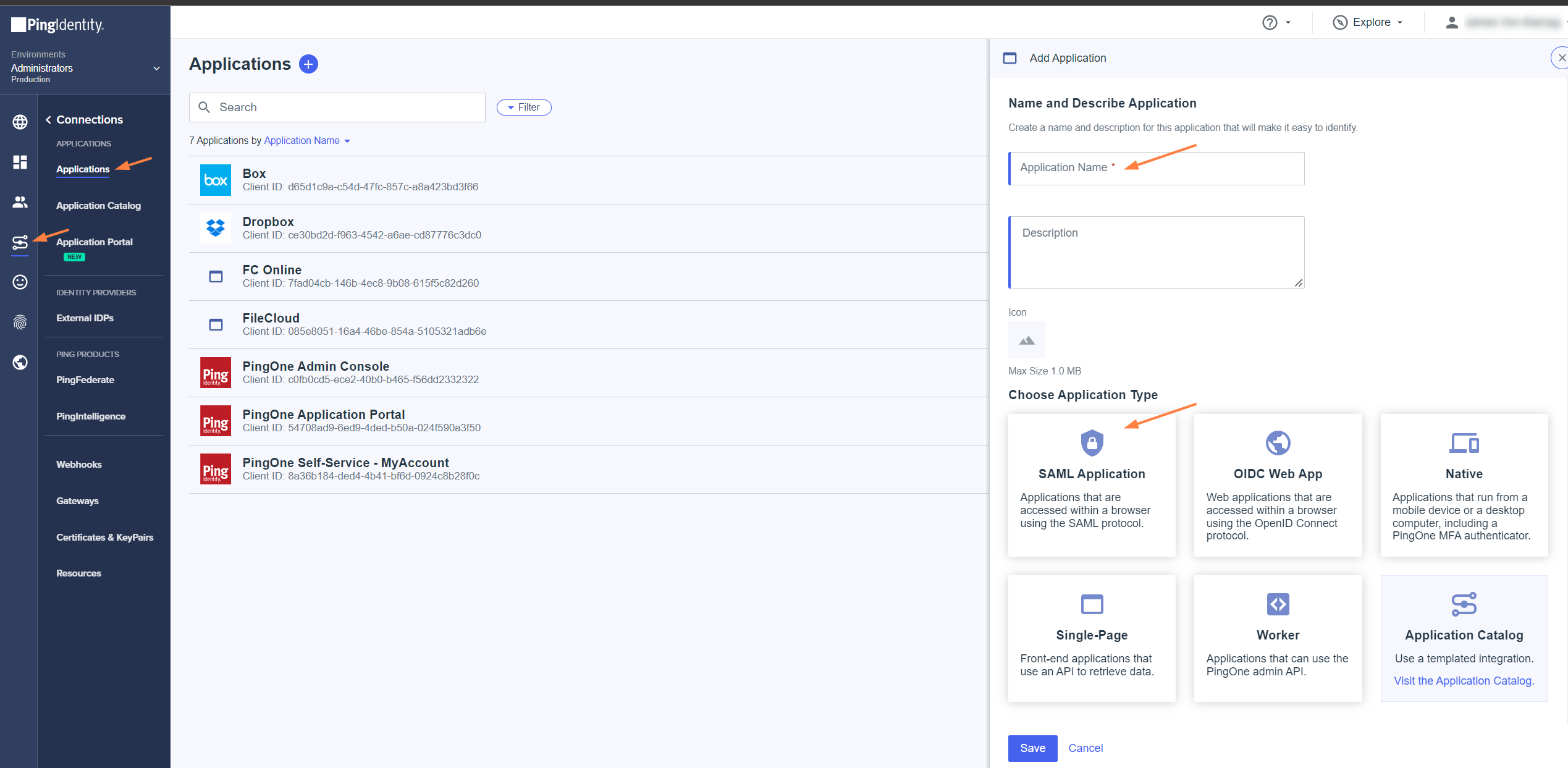

- Log in to the Ping Identity dashboard, and click the Connections icon in the navigation panel.
- Click Applications, then click the + button.
- In the right panel, click SAML Application.
- Name and save the application.

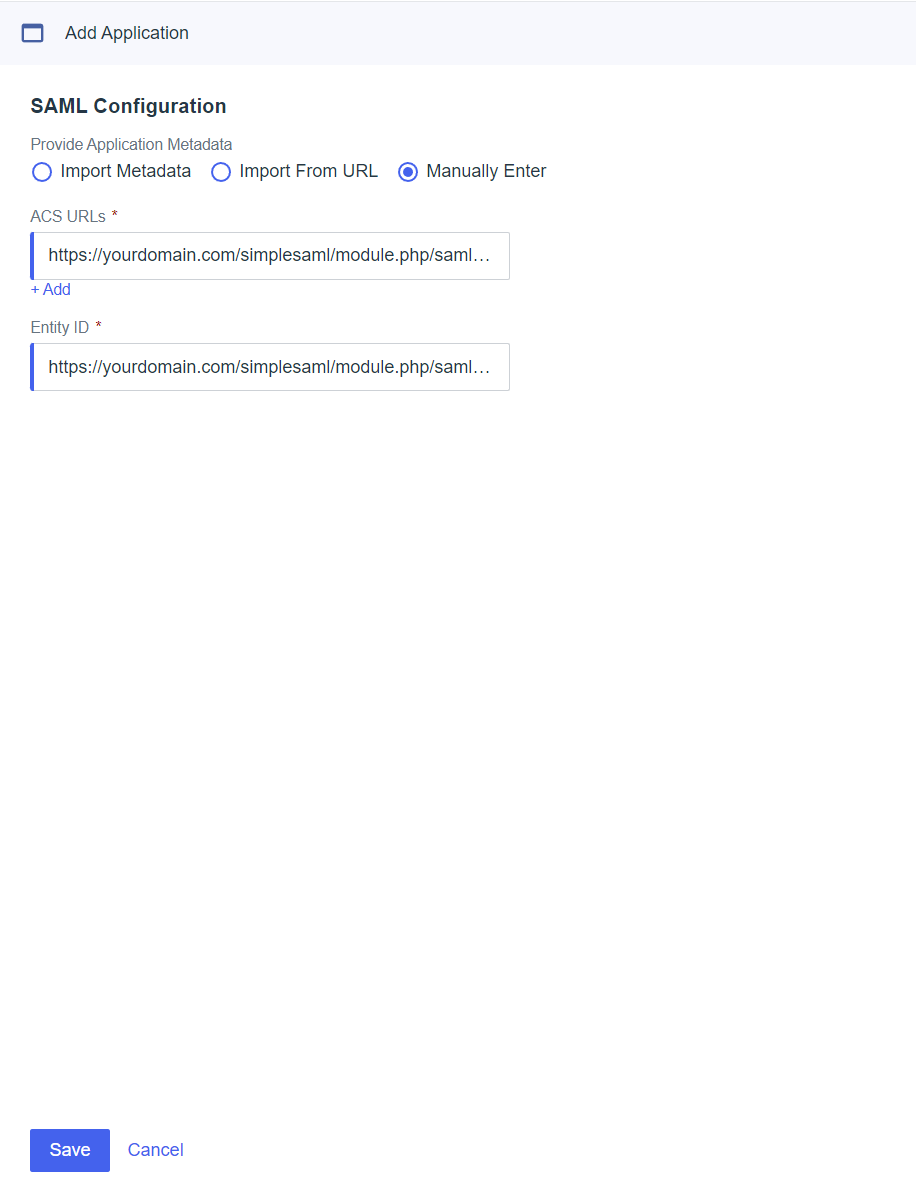

The SAML Configuration screen appears in the right panel. - Select Manually Enter, and fill in the fields as follows:
ACS URLs:
https://<your_filecloud_url>/simplesaml/module.php/saml/sp/saml2-acs.php/default-sp
Entity ID:
https://<your_filecloud_url>/simplesaml/module.php/saml/sp/metadata.php/default-sp - Click Save.
Several tabs appear in the right panel. Select the Attribute Mappings tab, then click add the following attributes:
, andField name
Flags
Ping One Value
givenName
Include in SAML Assertion Given Name
mail
Include in SAML Assertion Email Address
sn Include in SAML Assertion Family Name uid Include in SAML Assertion User ID Click the Configuration tab.

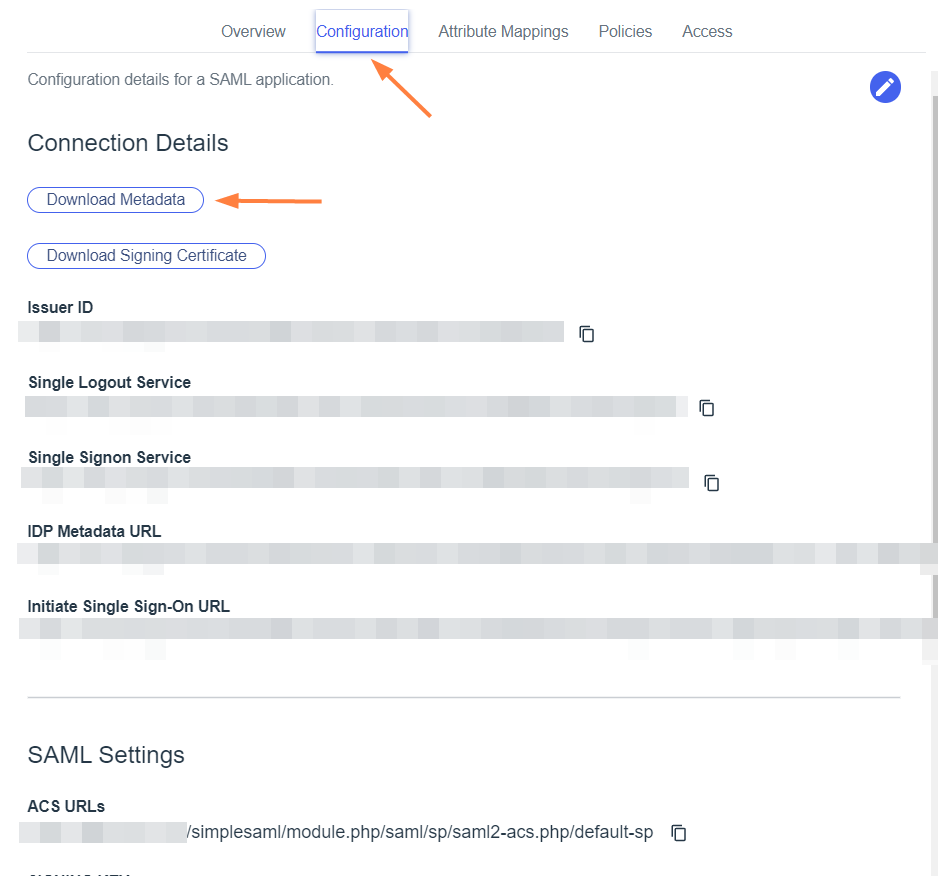

To get a copy of the metadata file associated with the configuration, click Download Metadata.
Save the file so you can enter its contents into the FileCloud admin portal.

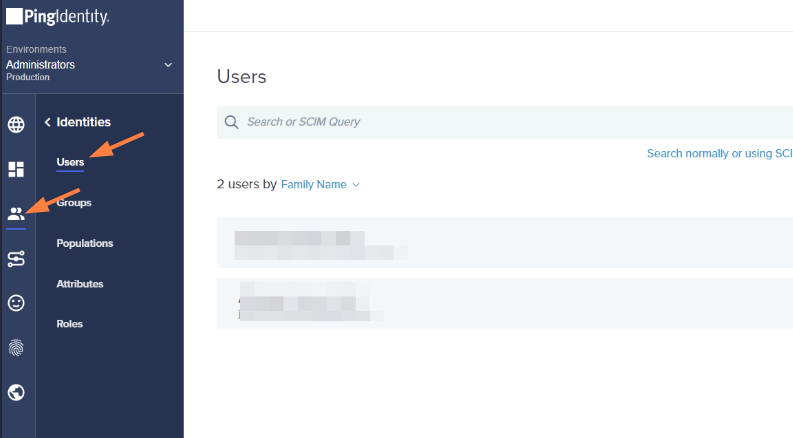

Your application configuration is now complete.Click the Identities icon in the Ping Identity navigation panel.
Click Users, and then add your users.
Configuration in Filecloud Admin portal

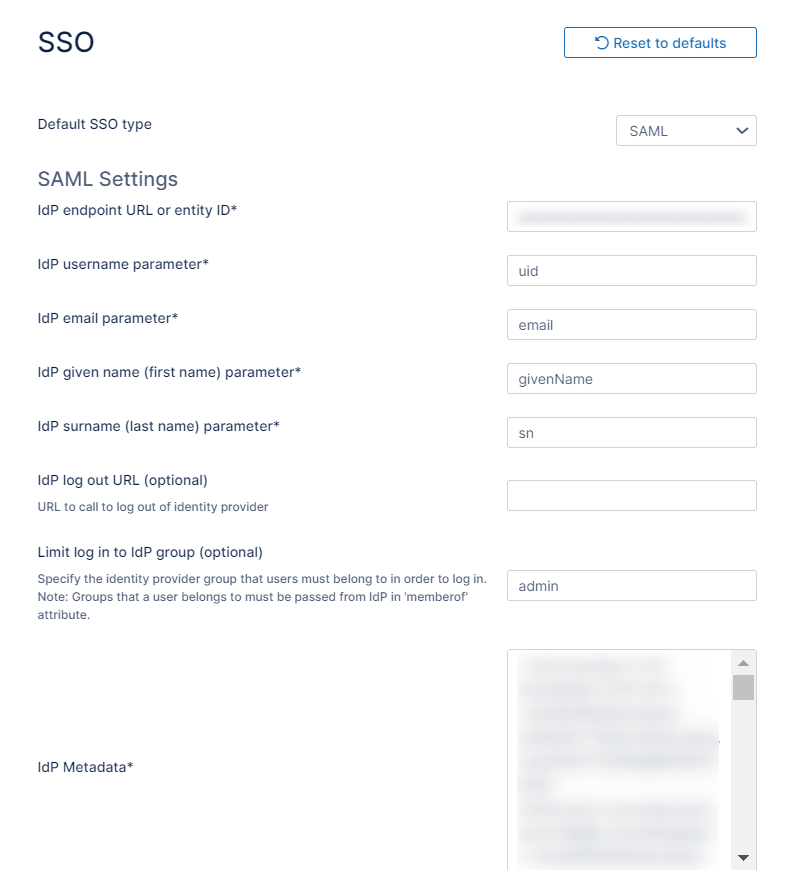

- In the admin portal, go to Settings > SSO.
Enter the following information:

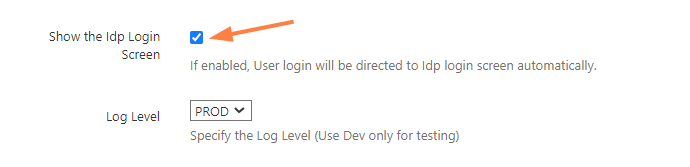

Field Value IdP End Point URL Enter the value of Issuer Id: ( Configuration tab → Issuer ID just below the "Download Metadata" button) IdP Username Parameter uid IdP Email Parameter mail IdP Given Name Parameter givenName IdP Surname Parameter sn IdP Metadata Copy the contents of the metadata file downloaded above paste them here. - If you want users to see the Ping Identity login after they click Login with SSO, scroll to the bottom of the screen and check Show the Idp Login Screen.
If you want users to be directly logged into FileCloud after they click Login with SSO, do not check Show the Idp Login Screen. Click Save.

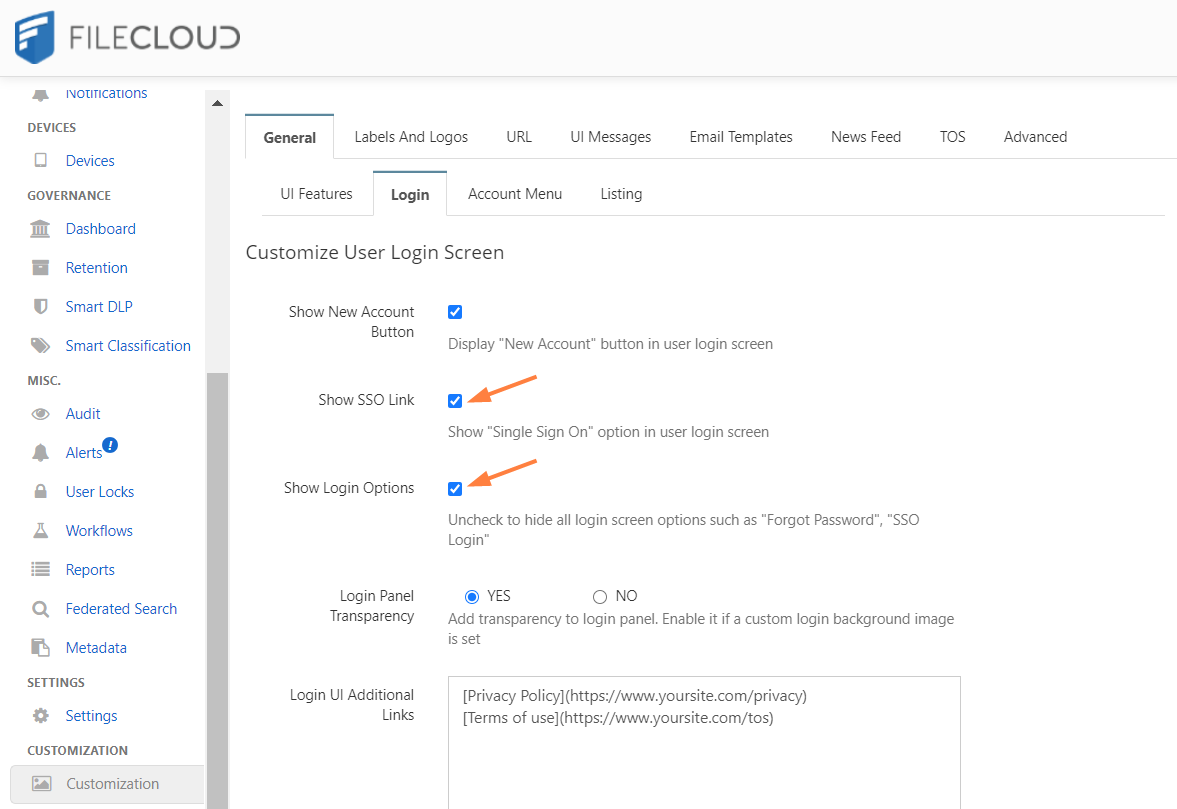

Go to Customization > General > Login and check Show SSO Link and Show Login Options.
Log in to FileCloud using Single Sign-on with Ping Identity

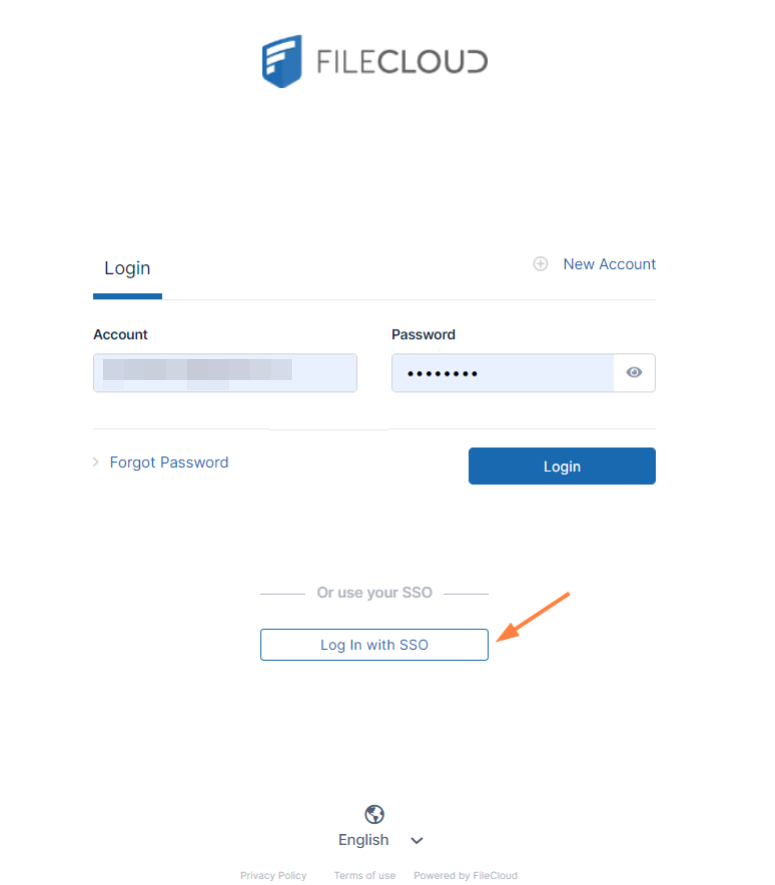

In the Filecloud User login page, the user chooses Login with SSO.

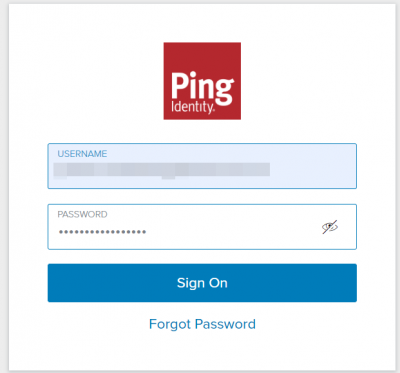

If you have checked Show the Idp Login Screen in the FileCloud SSO settings, the user is redirected to the Ping Identity login screen, and must click Sign On.
Otherwise, the user is directly logged in to FileCloud.
