Major Release

FileCloud server version 23.242.0.29412 FileCloud client version 23.242.0.9064
GA release date: March 31, 2025

Installation and upgrade information

Installing FileCloud Server Upgrade Notes for FileCloud 23.242

SHA256 release checksums

filecloudupdate.zip 8d6ccd6d3ea0ffd3d27c456171fb7ad0f96461f8a385e12c36882346578e850c
FileCloudSetup.exe 947a4d29f153598713d893198cb6a635990c18843abc19f6883f97d1977b7884

Major new features

New User Interface for Settings

With Version 23.242, FileCloud has added a new admin portal interface for settings, which includes a search function. The search function enables you to configure settings without having to know which page they appear on.

The new Settings home page shows the top-level settings in a tabular format.

When you click a setting category, you are taken to a page that is similar to those of previous versions but places the additional settings in a navigation panel instead of page tabs.

When you enter a setting in the search bar, you are shown matching settings, and you are given the ability to change the value of a setting from there.

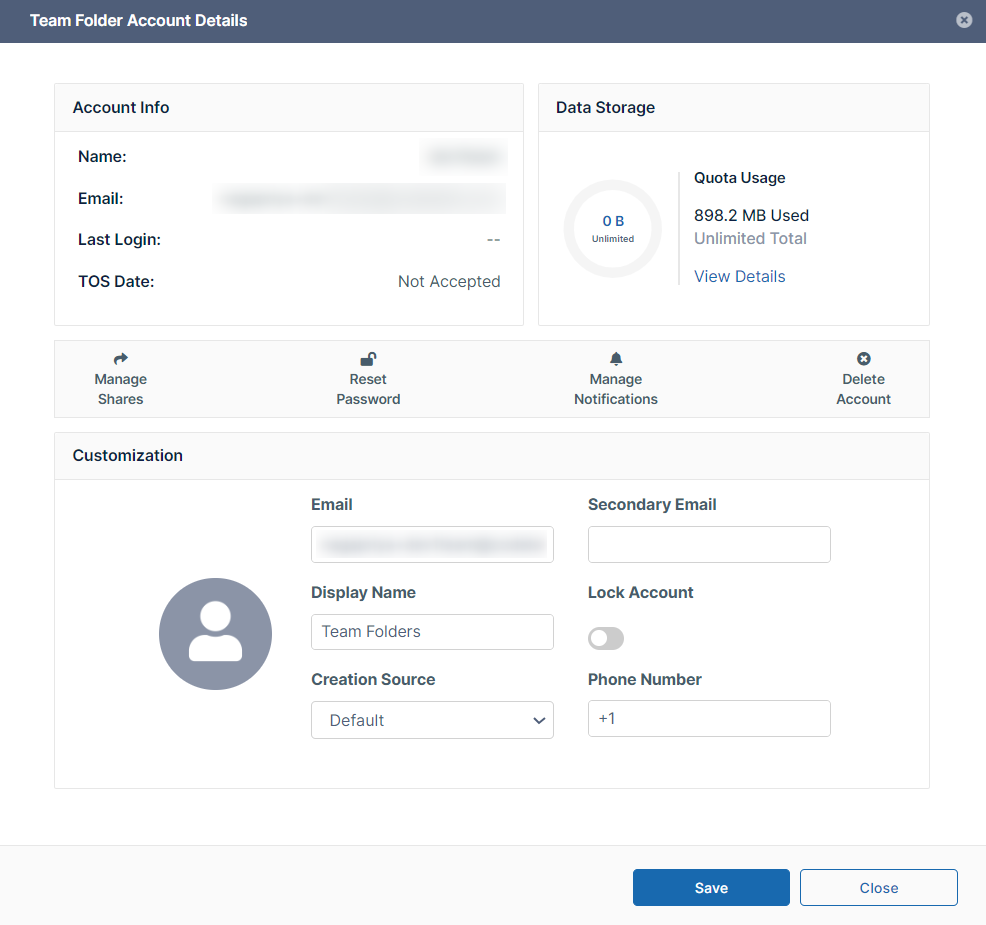

Team Folder Account Details
The new Team Folders settings page gives you access to a Team Folders Account Details dialog box that shows you information about your Team Folder account and enables you to change its settings.

For help using the new settings user interface, see Navigating and Searching for Settings - FileCloud Docs - Server.

Updated FileCloud Outlook Add-in

The FileCloud Outlook add-in, which is available in the Microsoft Apps Store, has been redesigned to make it simpler to save Outlook attachments to FileCloud and include FileCloud files as attachments or links in Outlook email. The new add-in can be used:

in both Windows and macOS
on Outlook desktop and Outlook Web
in the classic and the new Outlook apps.

The add-in opens as a FileCloud dashboard beside new and existing emails. In the dashboard, you can navigate to a file and click an Attach to Email button to attach it to an email as a file or a FileCloud share link.

You can also upload email attachments into a FileCloud folder from an Outlook email using the add-in.

To streamline the process, you can set up the add-in to automatically upload email attachments to a specified folder:

TOTP Option for 2FA Delivery Method for Admin Portal

TOTP login is now available as a 2FA delivery method for the admin portal. An admin sets up TOTP login by enabling 2FA for admin login and then choosing TOTP Authentication as the delivery method.

TOTP login to FileCloud has been tested successfully with the apps Google Authenticator, TOTP Authenticator, Duo Mobile, Microsoft Authenticator, Authy, Okta Verify, and 2FA Authenticator (2FAS). However, it should function properly with any authenticator app.

For more information, see Two-Factor Authentication for Admin Portal - FileCloud Docs - Server

UI Changes in FileCloud 23.242

Admin Portal

The "If a new user is created" workflow now includes a parameter for only including users in certain email domains.
The Audit Logs page now displays All records by default instead of Common records. All displays all audit records, while Common displays create new account, login, create file or folder, upload, download and share audit records.
The Customization > Email Templates page, which enables admins to customize system emails, now includes the email sent when a workflow disables an account.

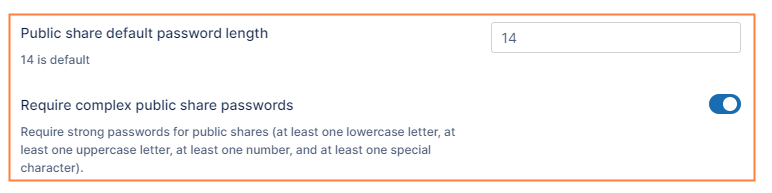

The Misc > Share settings page now includes the fields Public share default password length, which is set to 14 by default and Require complex public share passwords, which is enabled by default. Shares created with passwords prior to 23.242 maintain the passwords they were created with and are not required to comply with the new settings.
In the User Details dialog box, when Creation Source is set to SSO, the setting Change Password on Login, which does not apply, no longer appears.
In previous versions of FileCloud, in Storage settings the Managed Storage page was titled My Files. Now it is titled Managed Storage.

Information for Admins

The setting Allow account creation through login form has been added to enable users to block the createprofile API endpoint from the admin portal. The endpoint is used for account signups in the New Account form.

To disable the createprofile API endpoint:
1. Go to Settings > Admin.
2. Disable the Allow account creation through login form setting.

This version of FileCloud follows the current security recommendation that SSL certificate keys be 2048 bits in length. If your SSL certificate key is less than 2048 bits in length, generate a new SSL certificate key of at least 2048 bits to upgrade FileCloud successfully. For help, please Contact FileCloud Support.
If you are running mongoDB as a service in Windows and updating from a version of FileCloud earlier than 23.242 to FileCloud 23.242 or later, and you are replacing the provided mongodb.conf with a custom one, it is important that you remove the journal=true setting which is no longer supported.

To remove the command:
1. Open C:\\xampp\mongodb\mongodb.conf.
2. Delete the lines that are highlighted in the image below and save the file.

If you are using custom API services, the services may be logged out after the session timeout time (15 minutes by default). To prevent this from happening, in your custom API code, in requests to the FileCloud API, change your user-agent header to contain the string "FileCloud API". This is a one-time change only required when you upgrade from a version prior to 23.242 to 23.242 or higher.
Examples:
In PHP script, change:
```
// Set the custom User-Agent header
curl_setopt($ch, CURLOPT_HTTPHEADER, [
    "User-Agent: CustomUserAgent/1.0"
]);
```
to:
```
// Set the custom User-Agent header
curl_setopt($ch, CURLOPT_HTTPHEADER, [
    "User-Agent: FileCloud API"
]);
```
In CLI, change:
```
curl -X GET https://filecloud-domain.com/core/getfilelist -H "User-Agent: CustomUserAgent/1.0"
```
to:
```
curl -X GET https://filecloud-domain.com/core/getfilelist -H "User-Agent: FileCloud API"
```

If you are upgrading FileCloud, and you plan to use the updated FileCloud Outlook Add-in, if you have previously modified the default values for Access-Control-Allow-origin or Access-Control-Allow-Credentials, they may not be set to the values required to run the FileCloud Outlook Add-in. After updating the Outlook Add-in, open .htaccess and make sure these settings have the values indicated below.

To check/replace the htaccess settings:
1. Open the .htacess file:
  - ```
  Windows:  C:\xampp\htdocs\.htaccess
```
- ```
Linux: /var/www/html/.htaccess
```
2. If the following commands are missing or are present, but set to different values, set them as follows:
```
Header always set Access-Control-Allow-Origin ffol.filecloud.com
Header set Access-Control-Allow-Credentials true
```

Enhancements

Reference Number	Area	Feature
Server
CL-14983	Composer	Composer dependencies have been upgraded to current versions.
CL-14978	LibreOffice	LibreOffice has been upgraded to version 24.8.2.1 on Windows and to version 24.8.4.2 on Linux.
CL-14979	Memcached	Memcached has been upgraded from version 1.4.14, which is no longer supported, to version 1.6.x.
CL-14976	MongoDB	MongoDB has been upgraded from 6.0.11, which will no longer be supported later this year, to 7.0.16.
CL-15257	New account/Security	The setting Allow account creation through login form has been added to enable users to block the createprofile API endpoint from the admin portal. The endpoint is used for account signups in the New Account form. See Allow Users to Create and Approve Accounts - FileCloud Docs - Server.
CL-14997	OpenSSL	OpenSSL has been updated to version 3.4.0 for Windows, 3.2.24 for RHEL, and 3.0.2 for Ubuntu.
CL-16256	Password	The fields Public share default password length and Require complex public share passwords have been added. Shares created with passwords prior to this release maintain the passwords they were created with and are not required to comply with the new settings. See Configure Sharing Defaults - FileCloud Docs - Server.
CL-14977	PHP	PHP has been upgraded from version 8.2.20, which is no longer supported, to version 8.3.
CL-15986	PHP	The location of the PHP file can now be modified in the system to support preview in WebDRM. Please contact FileCloud support for help.
CL-14920	Reports	The parameter folder_path has been added to the Get downloaded files report.
CL-14476	Shares, Passwords	By default, Public share default password length is now set to 14, and Require complex public share passwords is now enabled. Complex passwords have at least one lowercase letter, one uppercase letter, one number, and one special character. See Configure Sharing Defaults - FileCloud Docs - Server.
CL-13944	Translations	Hungarian has been added as a user interface language choice for the admin portal and user portal.
CL-14945	Workflows	Users must now click Confirm in a message that appears when they click the icon to run a workflow.
CL-15017	Workflows	The "If a new user is created" workflow now includes a parameter for only including users in certain email domains.
CL-15054	Workflows	The email sent with the workflow that disables an account can now be customized in the Email Templates page.

Server-only Enhancements

Reference Number	Area	Feature
Server
CL-12653	High availability	There is now support for multiple instances of Memcached in a high availability system.
CL-14549	Network Folders	A problem causing users added to smart mount network shares to receive notifications for shares created by other users has been fixed.
CL-15069	Network Folders	An issue preventing users from adding Network Folders that end with "c$" has been fixed.
CL-14437	Preview	Preview of DICOM files now uses the Rubo DICOM viewer.

Security Fixes

Reference Number	Description
CL-15687	Users were able to copy a file and change the extension to a forbidden one. This has been fixed.
CL-15655	When users only had preview permission they were able to download files. This has been fixed.
CL-15696	Error messages sent when usernames were valid and when they were invalid differed, creating an enumeration vulnerability. This has been fixed.
CL-14610	jQuery has been removed to eliminate security issues.
CL-14025	Cookies were not bonded to clients and could be reused. This has been fixed.
CL-15577	Admins can now customize error message for 405 and 500 error codes. Please contact FileCloud support for help.
CL-14985	It was possible for a malicious actor to craft emails originating from FileCloud which could lead to phishing attacks. This has been fixed.
CL-15096	The twbs/bootstrap library has been upgraded to eliminate a security issue.
CL-15654	The user search returned all users instead of those specified in the User account search mode setting. This has been fixed.
CL-13808	Unauthenticated users were able to get other users' profile images. This has been fixed.
CL-13806	An endpoint response noted that a password reset applied to a promoted user. This has been fixed so that the type of user is not specified.
CL-16364	NodeJS has been upgraded to 22.13.1 to eliminate a security issue.
CL-15123	UI dependencies have been updated to eliminate security issues.

Bug Fixes

Reference Number	Area	Description
Server
CL-15877	AD	An Active Directory issue causing logins to fail has been fixed.
CL-15787	Audit	The default setting for the Audit Logs listing was Common which should only have displayed records of common operations but displayed all audit records. This has been fixed, so that Common displays only Common operations. In addition, the default setting has been changed to All, which correctly displays all audit records.
CL-16250	Audit	An issue causing a file preview to appear as a download in the audit log has been fixed.
CL-14098	Delete	An issue causing deletion of a folder with 50,000 files from the recycle bin has been fixed.
CL-15614	Download	An issue causing PDFs to download as corrupted files has been fixed.
CL-15243	Download	An issue causing the download option to not appear when over 100 files were listed and the user checked Select All has been fixed.
CL-15631	Error codes	On an invalid URL error the system incorrectly returned a 200 response code. This has been fixed and now the system returns a 404 response code for the condition.
CL-14394	Groups	When a user attempted to add a group to a Team Folder share, only the first ten group choices were shown for selection. This has been fixed.
CL-15933	Heuristic tool	The file integrity workflow was raising some false positives. This has been fixed by reconfiguring the tool.
CL-15095	LDAP	A fix in 23.232 that required users to add the prefix ldap:// to the ldap_connect parameter was not made backwards compatible. It has now been made backwards compatible so users of 23.232 and earlier do not have to apply the change.
CL-15890	ICAP	An issue with ICAP responses timing out has been addressed by adding a setting for specifying response time.
CL-16035	ICAP	An issue causing ICAP integration to fail when storage encryption was enabled has been fixed.
CL-15207	Login	When Incorrect Attempts Before Account Lockout was set to 0, indicating no lockout, when a login failed, a confusing error message indicating the lockout occurred after 0 failed attempts appeared. The message no longer appears.
CL-15497	MS Teams	When users working in FileCloud in MS Teams logged in to FileCloud with SSO, they could not share FileCloud files in Teams messages. This has been fixed.
CL-14607	Notifications	A problem causing errors to occur when certain notification rules were deleted has been fixed.
CL-14989	Password, SSO	The "New accounts must change password" setting no longer applies to SSO logins.
CL-15389	Password	On account creation with automatic password generation, the system sometimes returned a message that the password required at least 1 special character. This has been fixed.
CL-14242	Preview	Signatures on PDFs did not appear when users viewed them using QuickJS preview from the user portal. This has been fixed.
CL-16243	Preview	EML files were not able to be previewed. This has been fixed.
CL-14939	Search	Search was not always returning results. This has been fixed.
CL-16108	ServerSync	When ServerSync tried to upload a file with an Arabic (non-NFC data exchange format) file it returned an error. This has been fixed.
CL-15822	Shares	A delete button was accessible for public shares although it should have been inaccessible. This has been fixed.
CL-14722	Shares, Preview	Shares of video files could not be previewed or played in mobile browsers. This has been fixed.
CL-15713	SSO	Users could not log in using SSO to the user portal with the IdP Thales. This has been fixed.
CL-15490	Thumb cleanup	An issue causing thumb cleanup to fail has been fixed.
CL-15091	TOS	On mobile browsers, if the TOS was lengthy, users could not access the Accept Terms of Service button. This has been fixed.
CL-16545	Translations	When German was chosen as the user portal language, some English text was shown for Team Folders. This has been fixed.
CL-15385	Uploads	Uploaded folders will now have the same date as the most recently updated file in the folder.
CL-16213	Uploads	An issue causing notifications that upload exceeded quota to appear when uploads were within quota has been fixed.
CL-15674	User interface	An issue causing long folder names to only partially appear at the top of the UI has been fixed by allowing more room for the folder name and adding ellipses to the end of the name if it cannot fully fit.
CL-15597	User interface	The Default Primary Color set in Customization was not used in the title of screen notifications. This has been fixed.
CL-15154	Users	An issue causing the Manage Users screen to fail to export users correctly when a filter was applied has been fixed.
CL-15861	Workflows	An issue causing the "If file was not modified for specified days" workflow to return an error has been fixed.
CL-14681	Workflows	A "delete file on download" workflow failed to delete a file due to lack of delete permission when a share recipient of a PDF tried to download it. This has been fixed.

Client Bug Fixes

Reference Number	Area	Description
Drive
CL-15058	Login	Drive sometimes failed to see that the password had changed, and continually tried to log in. This has been fixed.
Drive, Sync
CL-15188	Right-click	In macOS and Windows, when users right-clicked on a file or folder on the mounted drive, the Drive and Sync options did not appear. This has been fixed.
Drive, FileCloud for Office
CL-15167	Drive	When a user clicked the path of a file returned by a search, Drive opened the folder containing the file but did not highlight the file. This has been fixed.
CL-15187	Drive, FileCloud for Office	When FileCloud for Office was added to Drive, users could not log in to FileCloud for Office. This has been fixed.
CL-15171	Login, settings	Trust FileCloud for Office was not available on the first use of FileCloud for Office, and login from FileCloud for Office panel was not available. These issues have been fixed.
FileCloud Desktop for macOS
CL-15008	Sync	An issue causing sync to fail in FileCloud Desktop for macOS has been fixed.

Server-only Bug Fixes

Reference Number	Area	Description
Server
CL-15869	Backup	Backup in multitenant environments was only backing up the default site. This has been fixed.
CL-15195	File management	The setting for disabling an admin to access user data did not prevent the admin from deleting user data. This has been fixed.
CL-15658	Network Share	An error occurred when listing a numerically named file in a network share. This has been fixed.
CL-15632	S3 Network Shares	When a folder and file in the same location had the same name, FileCloud returned and listed the file twice and did not return and list the folder. This has been fixed,
CL-15797	Seeding tool	The seeding tool was not deleting the local file after uploading to managed S3 storage. This has been fixed.
CL-15519	ServerLink	ServerLink synchronization was resetting the share approval workflow in policies. This has been fixed.
CL-14845	ServerLink	ServerLink failed to sync deleted files when versioning was disabled. This has been fixed.
