Device Configuration XML For Sync

Client Device configuration settings can be configured remotely by specifying the configuration XML using policies.

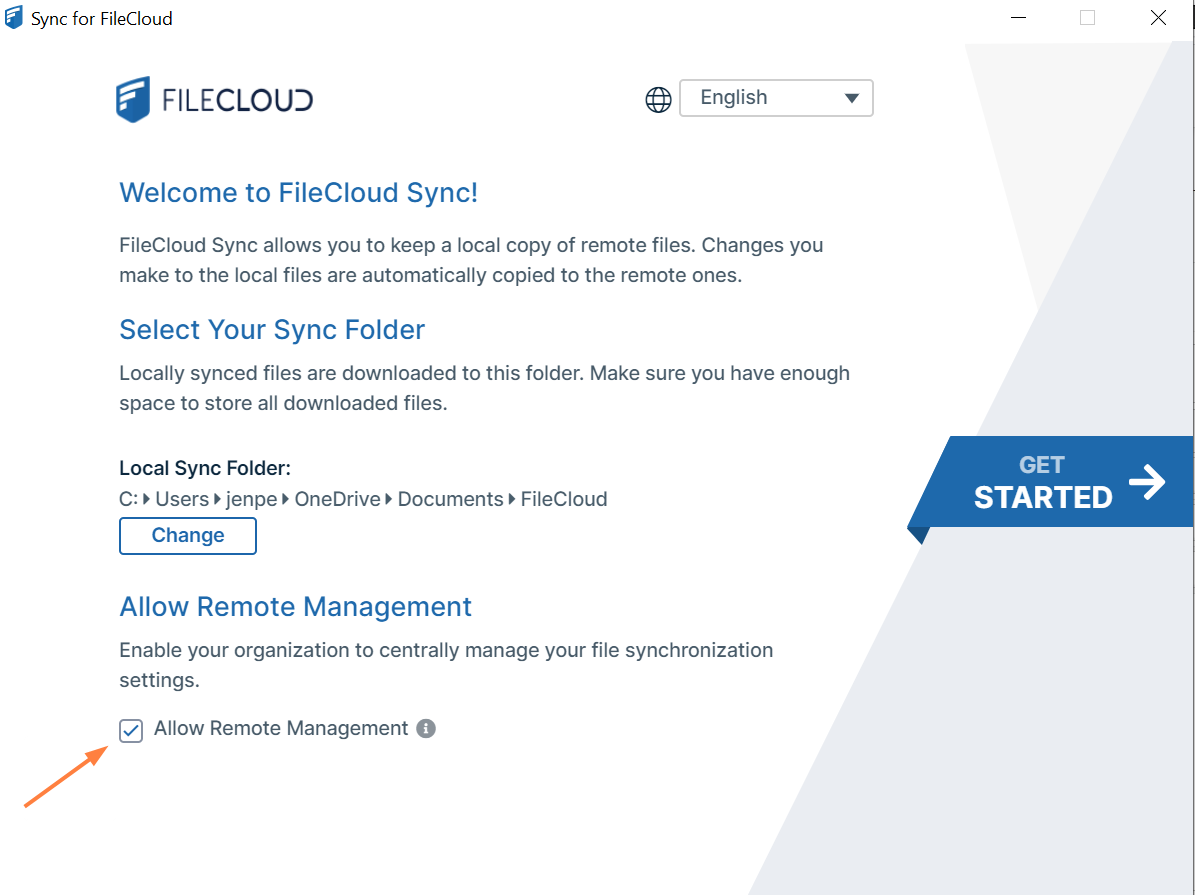

For the Sync client, when an Admin sets a remote client policy, a user working in the Sync app cannot modify the settings. Sync will display a message saying "Centralized Configuration is being applied. Settings cannot be changed."

Any Sync settings in the config xml block the user's ability to configure selective sync, network folder, and backup folder settings. If you want users to be able to continue to change these settings, set the allowuserconfigforlimitsync,  allowuserconfigfornwfolders, and allowuserconfigforbackup tags to 1 in the policy.

  • allowuserconfigforlimitsync - enables users to select selective sync folders
  • allowuserconfigfornwfolders - enables users to select network folders
  • allowuserconfigforbackup - enables users to select backup folders

See What XML settings allow users to modify folders? below.

FAQs

To set a device configuration for a policy:

  1. Open the FileCloud Admin portal and then select Settings.

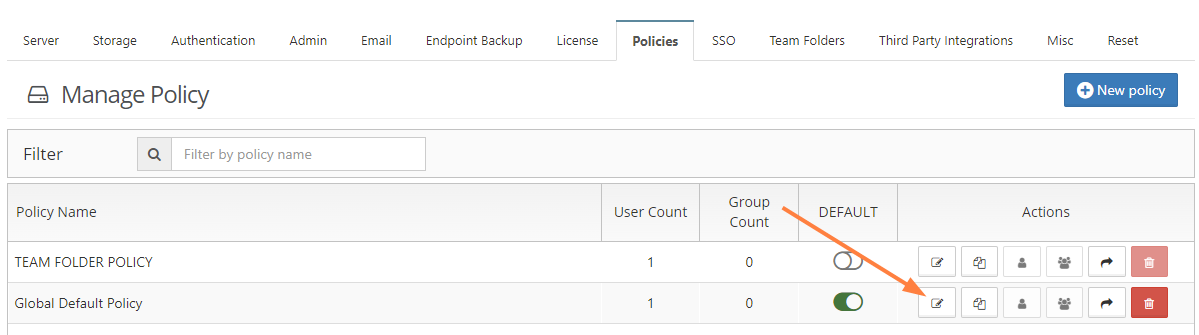

  2. To open the list of policies, select the Policy tab.
  3. Open the Policy that you want to edit
  4. Select the Device Configuration tab.
  5. In Client Configuration, paste or type in the following remote device configuration XML.

    <xml>
         <cloudsync>
            <!-- XML for Sync App -->
         </cloudsync>
    </xml>
  6. Replace <!-- XML for Sync App --> with any of the configuration parameters from the following table:.

Supported XML Tags for Sync

XML TagValueExample
limitfolders'|' separated list of folders for selective sync. If Limitfolders is not specified, then there are no folders for selective sync.<limitfolders>/john/folder1|/john/folder2</limitfolders>
offline_folder_countNumber of offline folders to sync. If key is not specified, then there are no offline folders.<offline_folder_count>0</offline_folder_count>

offline_folder_1

offline_folder_2

offline_folder_3

...

Depending upon the number of offline folders specified in the offline_folder_count, you will need to have the appropriate number of entries.

The folder value is specified using 6 parameters using the following format
<LOCAL FOLDER>|<REMOTE FOLDER>|<SYNCTYPE>|<SCHEDULE>|<RECURSE INTO DIRECTORIES>|<ALLOW REMOTE DELETION>|<SENDEMAIL>

<LOCAL FOLDER> = E.g: C:\data\localfolder
<REMOTE FOLDER> = E.g.: /john/folder1
<SYNC TYPE> = 0 - 2 Way Sync, 1 - Backup from Local to Remote, 2 - Read only copy of remote files to local
<SCHEDULE>=  1h (every 1 hour), 2h (every 2 hours), 4h (every 4 hours), 8h (every 8 hours), 24h (every 24 hours), 30m (every 30 minutes), manual (Manual), realtime (Real-time syncing)
<RECURSE INTO DIRECTORIES> = 1 - Recurse (top level and sub folders are synced), 0 - Not Recurse (only top level folder is synced)
<ALLOW REMOTE DELETION> = 1- Allowed (Local deletes are not propagated to server) , 0-Disallowed (Local deletes are not propagated to server)
<SENDEMAIL> = 1 - Send Email after backups, 0-No Email

<offline_folder_1>C:\data\local|/john/folder1|0|30m|1|0|0</offline_folder_1>
disablenotifications0/1 - Enable or Disable sync notifications. <disablenotifications>1</disablenotifications>
showlocks0/1 - Enable or Disable if lock information is shown in icon overlay<showlocks>1</showlocks>
syncfrequency

number - Number in seconds to sync to the server (default is 120 seconds)

<syncfrequency>100</syncfrequency>
checkmodtime0/1 - Advanced: check modification time in addition to size when checking for changes. Default is disabled.<checkmodtime>1</checkmodtime>
checkcrc0/1 - Advanced: check CRC in addition to size when checking for changes. Default is disabled.<checkcrc>1</checkcrc>
removeunshared0/1 - Delete locally synced folders that are unshared. Default is disabled<removeunshared>1</removeunshared>
deleteapprovalpctNumber from 0 to 100, which indicates what % of files requires deletion approval. Default is 10.
This applies only to file deletions in the local sync folder.
<deleteapprovalpct>20</deleteapprovalpct>
skipdeleteapproval0/1 - Whether approvals are needed for bulk sync changes. Default is disabled.
When set to 1, approval is required if > 50 files are deleted AND percent of files being deleted is > deleteapprovalpct.
This applies only to file deletions in the local sync folder.
<skipdeleteapproval>1</skipdeleteapproval>
currentlanguageAllows changing the current language of the Sync app<currentlanguage>dutch</currentlanguage>
globalbwforupload

Specifies the bandwidth limit when uploading files from the client to the server in terms of KB only.

This limit can be different from the download limit.

<globalbwforupload>100</globalbwforupload>
globalbwfordownload

Specifies the bandwidth limit when downloading files from the server to the client in terms of KB only.

This limit can be different from the upload limit.

<globalbwfordownload>50</globalbwfordownload>
altbwforupload

Specifies that alternative settings should be used instead of the global bandwidth limit when uploading files from the client to the server in terms of KB only.

(warning) If altbwforupload or altbwfordownload is specified but altbwfromtime and altbwtotime are missing, then the bandwidth values will not be set.

<altbwforupload></altbwforupload>
altbwfordownload

Specifies that alternative settings should be used instead of the global bandwidth limit when downloading files from the server to the client in terms of KB only.

(warning) If altbwforupload or altbwfordownload is specified but altbwfromtime and altbwtotime are missing, then the bandwidth values will not be set.

<altbwfordownload></altbwfordownload>
altbwfromtime

Specifies the starting time when the alternative settings should be used instead of the global bandwidth limit.

Time must be expressed in the format HH:MM:SS

(warning) If altbwforupload or altbwfordownload is specified but altbwfromtime and altbwtotime are missing, then the bandwidth values will not be set.

<altbwfromtime>16:45:00</altbwfromtime>
altbwtotime

Specifies the ending time when the alternative settings should be used instead of the global bandwidth limit.

Time must be expressed in the format HH:MM:SS

(warning) If altbwforupload or altbwfordownload is specified but altbwfromtime and altbwtotime are missing, then the bandwidth values will not be set.

<altbwtotime>24:00:00</altbwtotime>
altbwschedule_dayofweek

Specifies the days of the week when the alternative settings should be used instead of the global bandwidth limit.

This value can be any number such as: {-1, 0, 1, 2, 3, 4, 5, 6} where:

  • -1 means every day
  • 0 means Sunday
  • 1 means Monday
  • and so on...
<altbwschedule_dayofweek>3</altbwschedule_dayofweek>
timeactivecontrolsset

Enables/Disables the Active Sync Hours settings

1 = enabled

0 = disabled

<timeactivecontrolsset>1</timeactivecontrolsset>
activesync_daysofweek

Specifies the days of the week when a client can run the Sync app

Any number {-1, 0, 1, 2, 3, 4, 5, 6} where:

  • -1 = Everyday
  • 0 = Sunday
  • 1 = Monday
  • and so on...
<activesync_daysofweek>5</activesync_daysofweek>
activesync_timeofday

Specifies the times during the days of the week when a client can run the Sync app

Use the format HH:MM:SS-HH:MM:SS

<activesync_timeofday>8:00:00-20:00:00</activesync_timeofday>
allowuserconfigforlimitsync

0 = cannot modify the folder and any limitfolder setting is applied

1 = can modify the folder and overrules any limitfolder setting

This value works in combination with:

  • limitfolders
<allowuserconfigforlimitsync>1</allowuserconfigforlimitsync>
allowuserconfigfornwfolders

Allows user to configure network folders

0 = cannot modify the folder and any offlinefolder setting is applied

1 = can modify the folder and overrules any offlinefolder setting

This value works in combination with:

  • offlinefolders
<allowuserconfigfornwfolders>1</allowuserconfigfornwfolders>
allowuserconfigforbackup

0 = cannot modify the folder and any offlinefolder setting is applied

1 = can modify the folder and overrules any offlinefolder setting

This value works in combination with:

  • offlinefolders
<allowuserconfigforbackup>1</allowuserconfigforbackup>
checkupdates
(available in FileCloud 22.1)

0 = Sync does not check for updates on startup

1 = (default) Sync checks for updates on startup, and notifies user if there is an update

<checkupdates>1</checkupdates>

The easiest way to get the configuration XML for Sync is by installing a copy of Sync and configuring it as needed, and then exporting the configuration.

To export Sync configuration settings:

  1. Install and Log In to FileCloud Sync.
  2. From the system tray, right-click the FileCloud Sync icon, and choose Open.
    The mini-dashboard opens.

  3. Click Dashboard.
    The main dashboard opens..
  4. Click Help.
    The Help window opens.

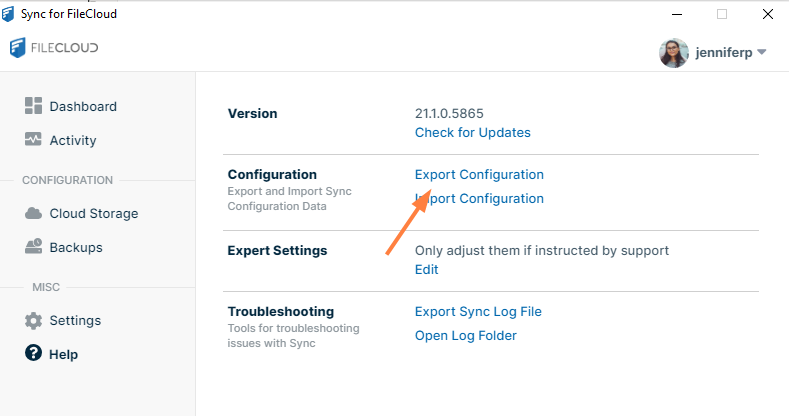

  5. Under Configuration, click Export Configuration.

When specifying values, variables can be used as well. The following variables are currently supported.

VariableNotes
${USER}Replaces with current logged in user name from the Operating System
${HOME}Replaces with the location of the current user's Home Path
${USERID}Replaces with the currently logged in FileCloud user account name

If your users are running the FileCloud Sync app on a slow network, when Sync transfers files it can quickly use up all the network bandwidth.

You can have your users set individual bandwidth rates by following instructions in the Users Guide:

Set Bandwidth Rate Limits for Sync

Or you can use centralized device management to limit bandwidth rates for all clients.

(warning) If Centralized Device Configuration is set, the user will not be allowed to change the settings from the User Portal. The user will see the following message:
 Centralized Configuration is being applied. Bandwidth Settings cannot be changed. Please contact your administrator for assistance.


The XML code will include the following lines:

<cloudsync>
      <globalbwforupload></globalbwforupload>
   <globalbwfordownload></globalbwfordownload>
   <altbwforupload></altbwforupload>
   <altbwfordownload></altbwfordownload>
   <altbwfromtime></altbwfromtime>
   <altbwtotime></altbwtotime>
   <altbwschedule_dayofweek></altbwschedule_dayofweek>
 </cloudsync>


XML TagValueExample
globalbwforupload

Specifies the bandwidth limit when uploading files from the client to the server in terms of KB only.

This limit can be different from the download limit.

<globalbwforupload>100</globalbwforupload>
globalbwfordownload

Specifies the bandwidth limit when downloading files from the server to the client in terms of KB only.

This limit can be different from the upload limit.

<globalbwfordownload>50</globalbwfordownload>
altbwforuploadSpecifies that alternative settings should be used instead of the global bandwidth limit when uploading files from the client to the server in terms of KB only.<altbwforupload></altbwforupload>
altbwfordownloadSpecifies that alternative settings should be used instead of the global bandwidth limit when downloading files from the server to the client in terms of KB only.<altbwfordownload></altbwfordownload>
altbwfromtime

Specifies the starting time when the alternative settings should be used instead of the global bandwidth limit.

Time must be expressed in the format HH:MM:SS

<altbwfromtime>16:45:00</altbwfromtime>
altbwtotime

Specifies the ending time when the alternative settings should be used instead of the global bandwidth limit.

Time must be expressed in the format HH:MM:SS

<altbwtotime>24:00:00</altbwtotime>
altbwschedule_dayofweek

Specifies the days of the week when the alternative settings should be used instead of the global bandwidth limit.

This value can be any number such as: {-1, 0, 1, 2, 3, 4, 5, 6} where:

  • -1 means every day
  • 0 means Sunday
  • 1 means Monday
  • and so on..
<altbwschedule_dayofweek>3</altbwschedule_dayofweek>

 If altbwforupload or altbwfordownload is specified but altbwfromtime and altbwtotime are missing, then the bandwidth values will not be set.

 A "Missing RMC params" message will be displayed in the log file.



As an administrator, you can enable or disable a client's ability to set a schedule for when the Sync app runs.
Users set their schedule from the Sync dashboard. See Limit Sync To a Schedule.

(warning) If Active Sync Hours is disabled, Sync will be active and function normally unless the user clicks the Pause button to stop it.

Use the following XML code to allow or disable the Active Sync Hours checkbox and settings.

<cloudsync>
  <timeactivecontrolsset></timeactivecontrolsset>
  <activesync_daysofweek></activesync_daysofweek>
  <activesync_timeofday></activesync_timeofday>
</cloudsync>

XML TagValueExample
timeactivecontrolsset

1 = enabled

0 = disabled

<timeactivecontrolsset>1</timeactivecontrolsset>
activesync_daysofweek

Any number {-1, 0, 1, 2, 3, 4, 5, 6}

-1 = Everyday

0 = Sunday

1 = Monday

...etc.

<activesync_daysofweek>5</activesync_daysofweek>
activesync_timeofdayUse the format HH:MM:SS-HH:MM:SS<activesync_timeofday>8:00:00-20:00:00</activesync_timeofday>

When device configuration xml is included for Sync, whether or not the settings included affect selective Sync folder, network folder, or backup folders, by default, users are prevented from configuring these folder types in the Sync application.

As an administrator, you can override this, and allow Sync users to modify the following folders:

  • Selective Sync folders
  • Network folders
  • Backup folders

The XML Settings for enabling or disabling the ability to modify these folders are:

XML TagValueExample
allowuserconfigforlimitsync

0 = user cannot modify Selective Sync folders and any limitfolder setting, if present in xml, is applied.

1 = user can modify Selective Sync folders and this overrules any limitfolder settings.

<allowuserconfigforlimitsync>1<allowuserconfigforlimitsync>
allowuserconfigfornwfolders

0 = user cannot modify Network folders and any offlinefolder setting configured for Network folders, if present, is applied.

1 = user can modify Network folders and this overrules any offlinefolder setting configured for Network folders.

<allowuserconfigfornwfolders>1<allowuserconfigfornwfolders>
allowuserconfigforbackup

0 = user cannot modify the Backup folder and any offlinefolder setting configured for Backup folders, if present, is applied.

1 = user can modify the folder and this overrules any offlinefolder setting configured for Backup folders

<allowuserconfigforbackup>1</allowuserconfigforbackup>

Scenarios

If xml device config settings are present, whether or not they apply to selective sync or offline folders, they must be overridden to allow users to modify folder settings in the Sync client app.

Controlling modifications to selective sync folders

limitfolders

allowuserconfigforlimitsync

Sync User's Access
/john/folder1|/john/folder21

Although limit folders are present, because allowuserconfigforlimitsync is set to allow modifications:

  • limitfolder settings will NOT be applied
  • Users CAN modify their selective sync folders
/john/folder1|/john/folder20

Because limit folders are present, AND allowuserconfigforlimitsync is set to disable modifications:

  • limitfolder settings will BE applied
  • Users CANNOT modify their selective sync folders
None set but other settings are present1

Because allowuserconfigforlimitsync is set to allow modifications:

  • Users CAN modify their selective sync folders, irrespective of any other settings in the config
None set but other settings are present0

Because allowuserconfigforlimitsync is set to disable modifications:

  • Users CANNOT modify their selective sync folders

Controlling modifications to selective network folders

offline foldersallowuserconfigfornwfoldersSync User's Access
/EXTERNAL/folderA1

Because offline folders (configured as Network Folders) are present, AND allowuserconfigfornwfolders is set to enable modifications:

  • offlinefolder setting configured for Network Folders, will NOT be applied
  • Sync users CAN modify Network Folders
/EXTERNAL/folderA0

Because offline folders (configured as Network Folders) are present AND allowuserconfigfornwfolders is set to disable modifications:

  • offlinefolder setting configured for Network folders, will BE applied
  • Sync users CANNOT modify Network Folders
None set but other settings are present1

Because allowuserconfigfornwfolders is set to enable modifications:

  • Sync users CAN modify Network Folders, irrespective of any other settings in the config.
None set but other settings are present0

Because allowuserconfigfornwfoldersis set to disable modifications:

  • Sync users CANNOT modify Network Folders


Controlling modifications to selective backup folders

offline foldersallowuserconfigforbackupSync User's Access
C:\data\local1

Because offline folders (configured for backup) are present, AND allowuserconfigforbackup is set to enable modifications:

  • offlinefolder setting configured for Backup folders, will NOT be applied
  • Sync users CAN modify backup folders
C:\data\local0

Because offline folders (configured for backup) are present AND allowuserconfigforbackup is set to disable modifications:

  • offlinefolder setting configured for Backup folders, will BE applied
  • Sync users CANNOT modify backup folders
None set but other settings are present

Because allowuserconfigforbackup is set to enable modifications:

  • Sync users CAN modify backup folders, irrespective of any other settings in the config.
None set but other settings are present0

Because allowuserconfigforbackup is set to disable modifications:

  • Sync users CANNOT modify backup folders

In the Sync client, by default, there is a setting on the initial window of the log-in wizard: Allow Remote Management.

This setting is also available in the Settings window.

  • It allows Sync users to manage their Sync application by overriding an Administrator's settings
  • In some cases, administrators want to disable the toggle by hiding it.
  • In FileCloud Server version 19.1 and later, an administrator can hide the setting by adding a registry key called allowcentralmgmtusermodify
  • When set to 0, the central management option is disabled and can no longer be changed by users

To add the registry key:

  1. Add a registry key under:

Computer\HKEY_LOCAL_MACHINE\SOFTWARE\CodeLathe\FileCloud\DefaultCfg

2.  Name the registry key:

allowcentralmgmtusermodify

3. Restart the computer.
